High Quality Sewer Drain Pipe Inspection Camera And Water Well Borehole Camera Manufacturer.

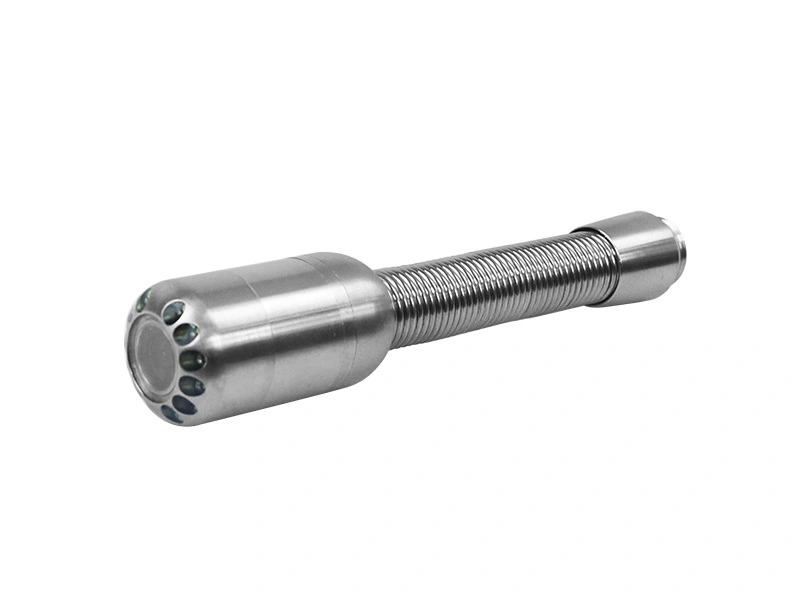

23mm camera head
● Camera head size Φ23 x 45mm for pipe Φ25 to 200mm
● AHD module, sensor 1/3" CMOS ,1.3 mega-pixel
● Camera head casing material stainless steel
● Detachable with pins type connection to Cable Reel
● Field of view 120°,IP68 waterproof
● 12 pcs high intensity white LED

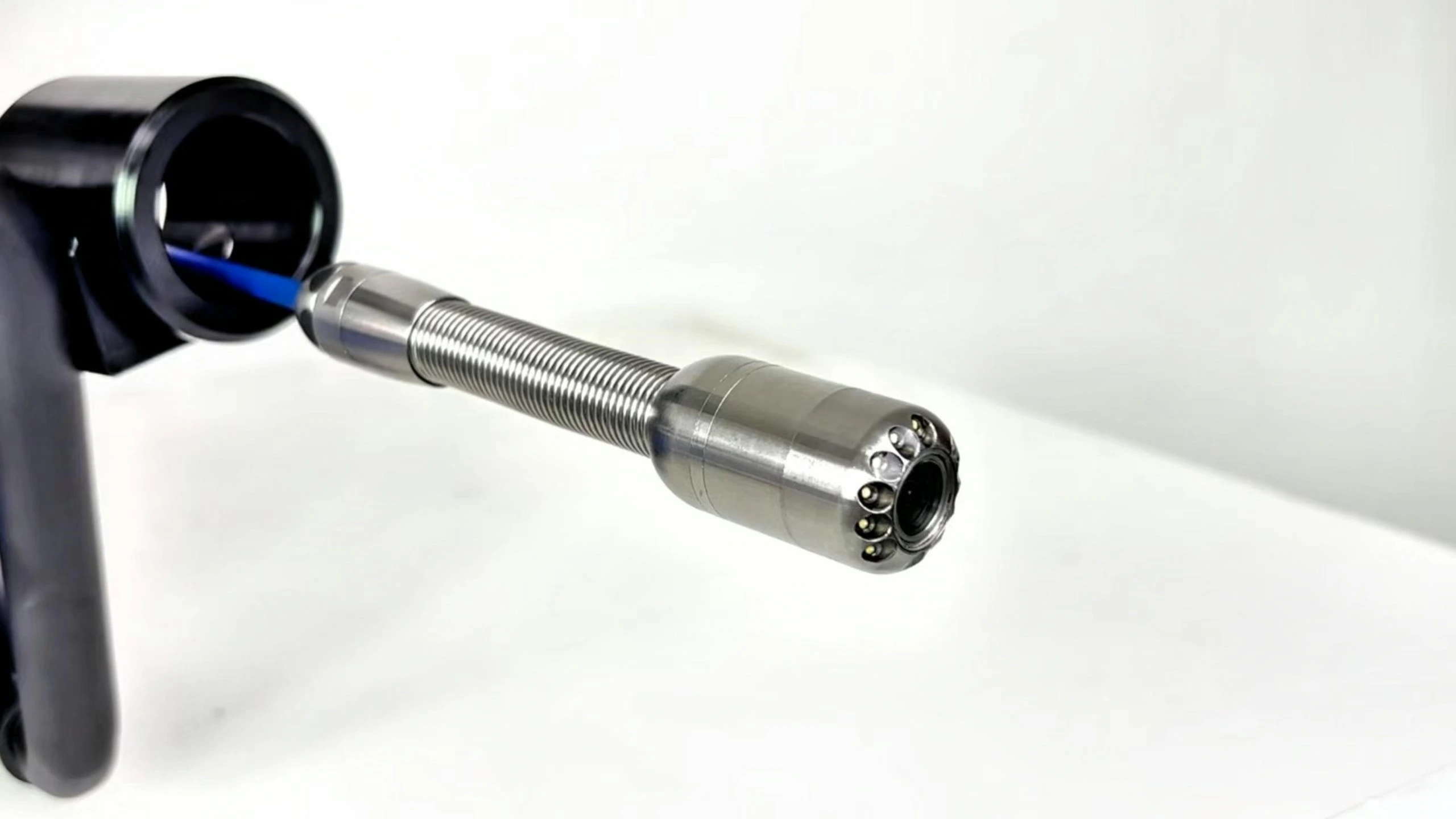

23mm camera head
______
| Camera size | 23mm x 53mm |
| Camera Material | Aluminum & Toughened glass lens window |
| LED | 12 pcs high intensity white LED |
| Waterproof level | Field of view 60°, IP68 waterproof |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
