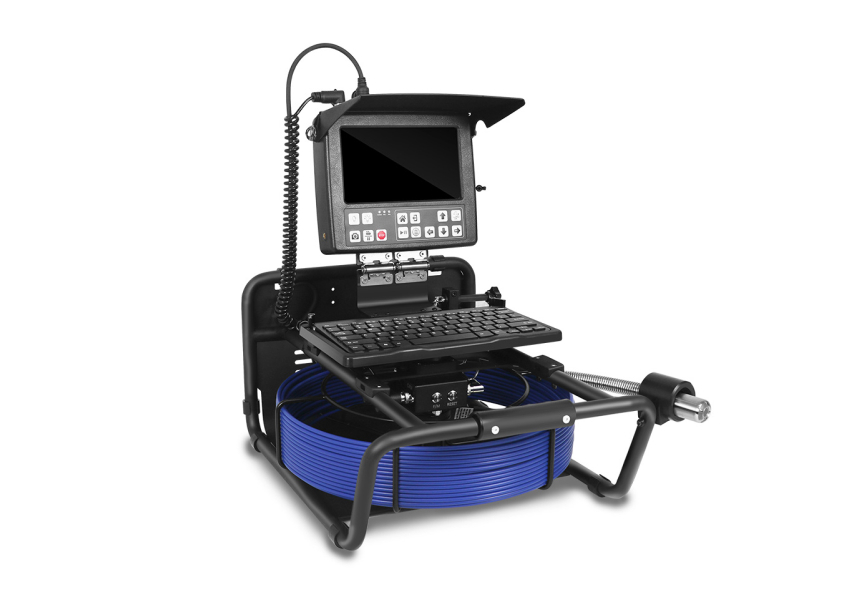

29mm AHD Pipe Inspection Camera System Sewer Pipe Camera For Sale
The 29mm AHD Pipe Inspection Camera System is a versatile and high-quality tool for inspecting pipes, drains, and sewers with a diameter of 29mm. Its advanced AHD technology provides clear and detailed images to help identify issues and make informed decisions for maintenance and repairs.
Accurately understanding the internal conditions of pipes is crucial in municipal engineering, industrial facility maintenance, and various pipeline-related projects. Our pipe inspection camera, as professional devices integrating advanced technology and superior performance, are designed to provide you with efficient and accurate pipeline inspection solutions.
1. Powerful Inspection Capabilities
Compatible with various pipe diameters: A range of interchangeable cameras in various specifications easily handles pipe inspection needs ranging from 15mm to 300mm inner diameter. Whether you're inspecting narrow household pipes or large municipal drainage pipes, these cameras provide precise, in-depth inspections for a comprehensive range of applications.
High-Definition Imaging: Utilizing a high-resolution camera, some models offer 560-line TV resolution or higher. Equipped with a 1/4" CMOS sensor, it delivers crisp, clear images. From subtle cracks and corrosion marks to sediment and foreign matter within the pipe, everything is clearly visible, giving you a clear overview of the pipeline's condition.
Wide Field of View: The sewer pipe camera for sale boasts a 120° or wider field of view, reducing blind spots and enabling a wider inspection area in a single inspection. This improves inspection efficiency and ensures a comprehensive understanding of the pipeline's internal conditions.
2. Excellent Durability
Rugged Material: The camera housing is constructed of durable stainless steel, offering excellent corrosion resistance and long-term stable operation in harsh pipeline environments, effectively extending the device's lifespan.
Waterproof and Dustproof: With IP67 or even IP68 protection ratings, it operates even in pipes filled with sewage, slurry, or in dusty industrial environments, ensuring inspections are unaffected by environmental factors.
Pressure-Resistant Design: Some camera models can withstand pressures up to 10 bar pressure, it can adapt to deep-buried pipeline inspections that withstand high pressure, ensuring equipment reliability under complex working conditions.
3. Rich Features
Autofocus and Illumination Adjustment: Some high-end models feature autofocus, enabling quick and clear visualization of objects at varying distances within the pipeline. The adjustable LED lighting system flexibly adjusts brightness based on the pipeline's lighting conditions, ensuring optimal image quality even in extremely dark or highly reflective areas.
Text Annotation and Positioning: Supports text annotation, allowing you to record key information during the inspection process, such as pipeline number, inspection date, and defect location. The optional positioning transmitter allows precise camera positioning, significantly improving repair efficiency for pipeline problems requiring precise repair.
Data Storage and Transfer: Inspection data can be stored on a removable SD card with a capacity of up to 64GB or higher, facilitating subsequent review, analysis, and data transfer and sharing with computers and other devices. Some models also support USB. and Ethernet data transmission, meeting the data management needs of diverse users.
Overview of 29mm self-leveling Sewer Camera
______
| 8 inch IPS lcd screen, 1920X1080 resolution |
| DVR control box with audio ,video recording and photography function |
| Built in 6800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
| All-in-One Design ,Easy to Carry, Easy to use |
Main Part 1: 29mm self-leveling camera head
______
| Camera size | 29 x 238mm |
| Camera pixel | Sensor 1/3" CMOS, 2.0MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 90° |
| Light | 12pcs high light LED lighting adjustable |
| Connector | Detachable with pins type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 8"HD IPS LCD Screen, 1280X720 resolution |
| Waterproof level | IP68 |
| Function | 1080P format video, auido and photography function DVR |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 6800mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Material | Fiberglass push rod cable |
| Cable diameter | 5.2mm |
| Cable length | 20m-50m |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
