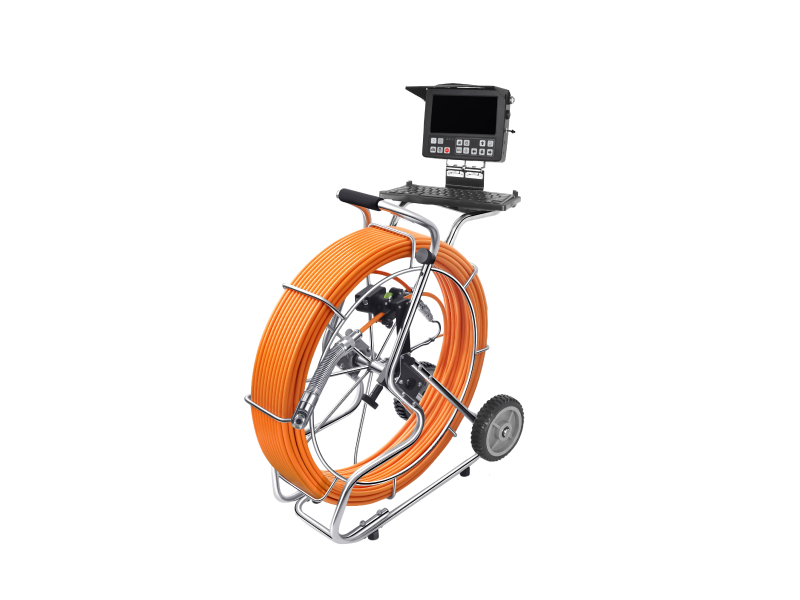

33mm Pan Tilt AHD 60m-150m 360 degree 8inch view Pipe Camera System
The 33mm Pan Tilt AHD Pipe Camera System offers versatile inspection capabilities with its 360-degree rotation and adjustable pan-tilt function, making it ideal for detailed examinations of pipelines ranging from 60 to 150 meters in length. Its compact 33mm diameter and 8-inch view screen enable operators to navigate tight spaces and visualize internal pipe conditions clearly. This system is perfect for professionals in plumbing, maintenance, and industrial inspections requiring accurate, real-time imaging within confined pipeline environments.
Overview of 33mm Pan Tilt Sewer Camera
______
| 360° rotation AHD Camera Head, Pan 360° Tilt 180° |
| 1/3 CMOS, 2.0MP pilex HD , waterproof IP68 |
| Adjustable focus function |
| 8 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 6800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
Main Part 1: 33mm Pan Tilt rotation camera head
______
| Camera size | 33mm x 226mm |
| Camera pixel | Sensor 1/3" CMOS, 2.0MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 120° |
| Focusing | Manual focus manually |
| Rotation range | Rotation: Pan 360°， Tilt 180° |
| Light | 4pcs high light LED lighting adjustable |
| Connector | Detachable with aviation plug type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 8"HD IPS LCD Screen, 1280X720 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Keyboard | USB wireless Keyboard real time typewriting |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 6800mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Material | Fiberglass push rod cable |
| Cable diameter | 9mm or 11mm |
| Cable length | 60m-150m |
| Reel size | 70 x 28 x 84cm |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
