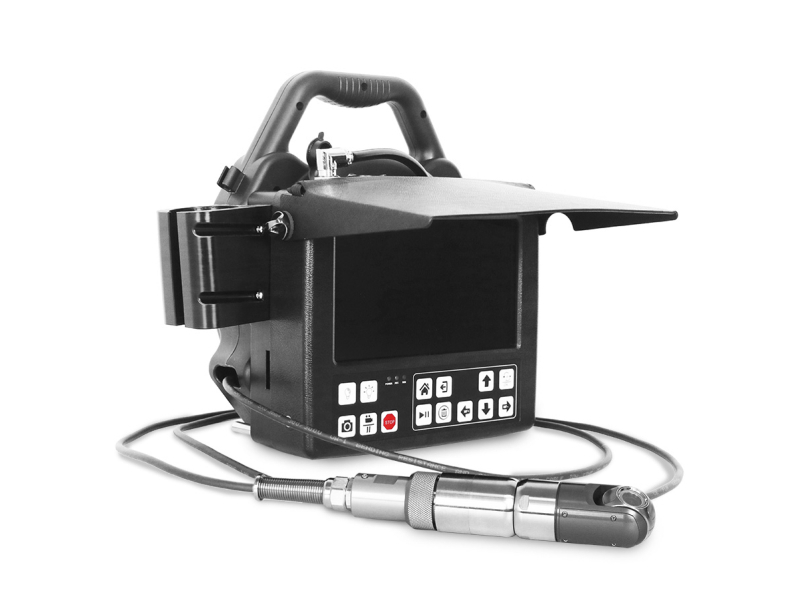

33mm Pan Tilt Portable AHD Chimney Inspection Camera
The 33mm Pan Tilt Portable AHD Chimney Inspection Camera is a versatile tool for inspecting chimneys and other narrow spaces. With its pan and tilt capabilities, high-definition camera, and portable design, it allows for efficient and thorough inspections in difficult-to-reach areas.
This portable AHD chimney inspection camera features a 33mm pan-tilt design, allowing for easy and thorough visual inspections. The high-definition camera delivers clear images, making it a valuable tool for chimney maintenance and repair professionals.
Overview of 33mm dual rotation Camera
______
| 33mm Pan 360 degree Tilt 180 degree rotation camera |
| 1/3 CMOS, 1.3MP pilex AHD , waterproof IP68 |
| 8 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| Built in 7000mA li-ion battery inside |
Main Part 1: 33mm Pan 360 degree Tilt 180 degree rotation camera head
______
| Camera size | 33mm x 128mm |
| Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 120° |
| Light | 4pcs high light LED lighting adjustable |
| Connector | Detachable with pins type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 8"HD IPS LCD Screen,1280*720 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 7000mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Cable diameter | 5mm |
| Cable length | 20m |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
