Vicam Camera - High Quality Sewer Pipe Inspection Camera Manufacturer Since 2010.

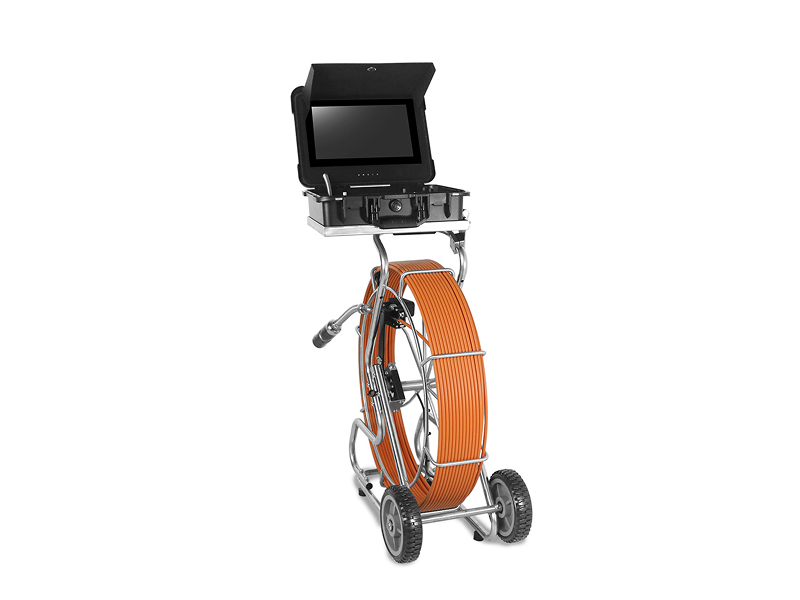

50mm Pan Tilt AHD 60m-150m 360 degree Rotation Manual Focus Push Pipe Camera Cable reel with tray
This camera cable reel features a 50mm pan-tilt AHD camera with manual focus and a 360-degree rotation capability, designed for detailed inspection in pipes ranging from 60m to 150m. The integrated tray allows organized cable management, facilitating efficient deployment and retrieval during pipeline inspection tasks.
Overview of 50mm Pan Tilt Sewer Camera
______
| 360° rotation AHD Camera Head, Pan 360° Tilt 180° |
| 1/3 CMOS, 2.0MP pilex HD , waterproof IP68 |
| Adjustable focus function |
| 13 inch IPS lcd screen, 1980x1080 resolution |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
Main Part 1: 50mm Pan Tilt rotation camera head
______
| Camera size | 50mm x 154mm |
| Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 120° |
| Focusing | Manual focus manually |
| Rotation range | Rotation: Pan 360°， Tilt 180° |
| Light | 6pcs high light LED lighting adjustable |
| Connector | Detachable with aviation plug type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 13"HD IPS LCD Screen, 1980x1080 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Keyboard | USB wireless Keyboard real time typewriting |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 8800mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Material | Fiberglass push rod cable |
| Cable diameter | 9mm / 11mm |
| Cable length | 60m-150m |
| Reel size | 70x 28 x 84cm |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
