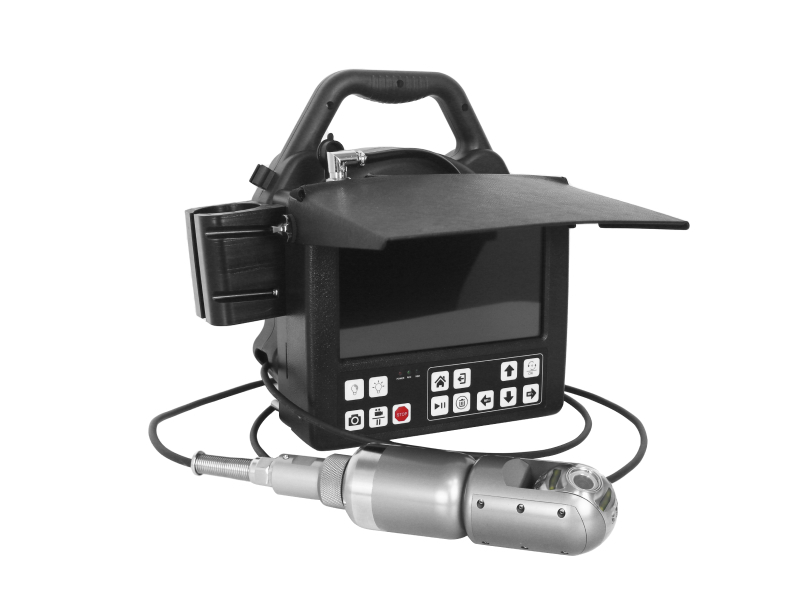

50mm Portable AHD Chimney Inspection Camera
The 50mm Portable AHD Chimney Inspection Camera is a compact and versatile tool for inspecting chimneys and other hard-to-reach places. With its high-definition AHD camera and portable design, it allows for easy and thorough visual inspections of chimneys, flues, and ductwork.
Introducing the 50mm Portable AHD Chimney Inspection Camera, a compact and versatile tool for inspecting chimneys and other hard-to-reach areas. This camera features advanced AHD technology, allowing for clear and high-definition video recordings. With its portable design and durable construction, this camera is perfect for chimney sweeps, contractors, and homeowners looking to inspect their chimneys for any potential issues. It can also be used for inspecting HVAC systems, plumbing, and other confined spaces. With its adjustable LED lights, 360-degree rotation, and waterproof capabilities, the 50mm Portable AHD Chimney Inspection Camera is a must-have for anyone in need of reliable and efficient chimney inspection tools.
Overview of 50mm Pan Tilt rotation Camera
______
| 50mm Pan Tilt 360 degree rotation camera |
| 1/3 CMOS, 1.3MP pilex FHD , waterproof IP68 |
| 8 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| Built in 7000mA li-ion battery inside |
Main Part 1: 50mm Pan 360° Tilt 180° rotation camera head
______
| Camera size | 50mm x 156mm |
| Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 120° |
| Light | 6pcs high light LED lighting adjustable (down view and side view) |
| Connector | Detachable with pins type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 8"HD IPS LCD Screen,1280*720 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 7000mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Cable diameter | 5mm |
| Cable length | 20m |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
