High Quality Sewer Drain Pipe Inspection Camera And Water Well Borehole Camera Manufacturer.

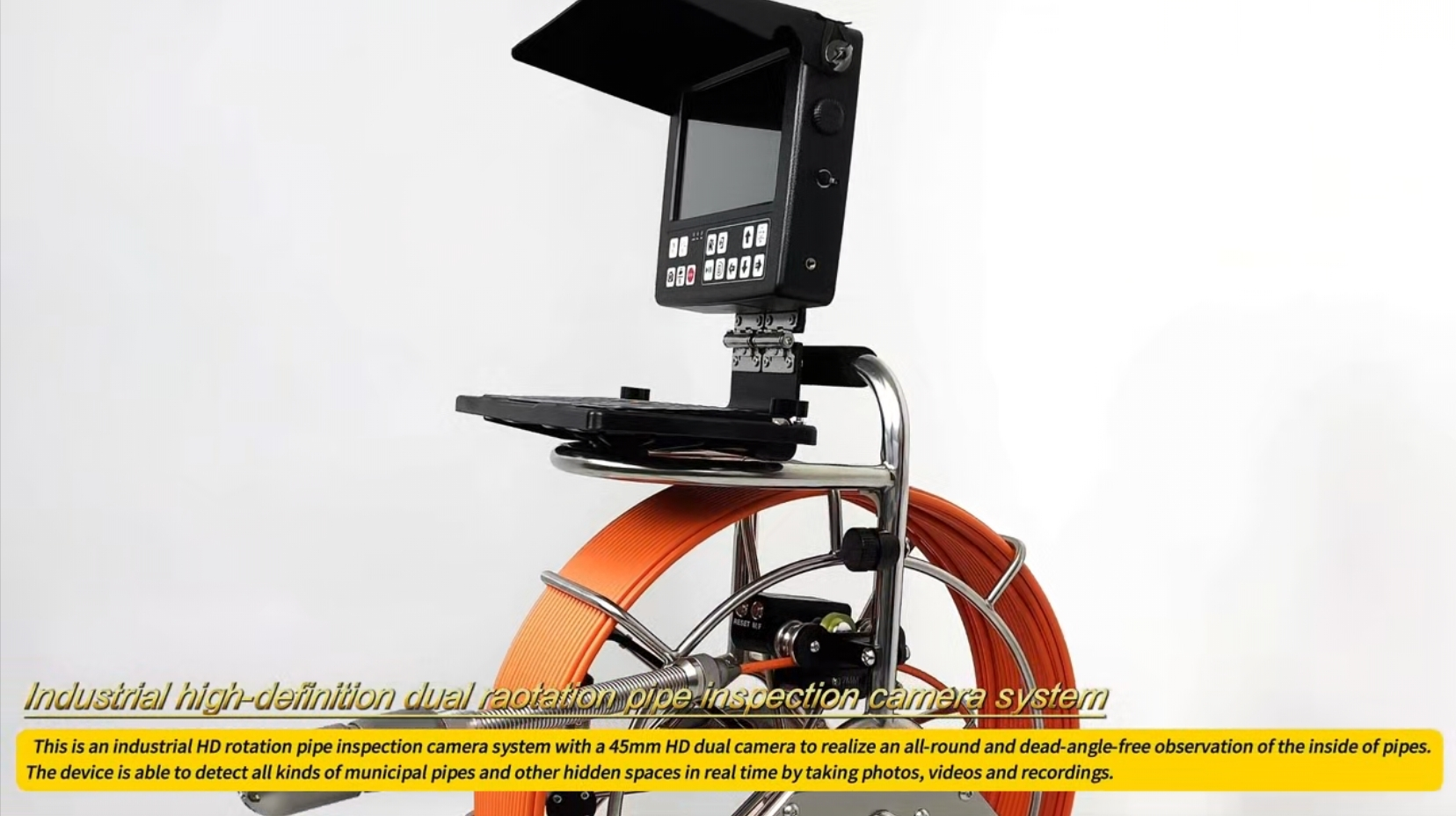

45mm AHD 60m Dual View Rotation Pipe Inspection Camera System
The 45mm AHD 60m Dual View Rotation Pipe Inspection Camera System is a powerful tool for inspecting and diagnosing pipe and sewer issues. With a 60m cable and dual view rotation capabilities, it provides clear and comprehensive views of hard-to-reach areas, making it an essential asset for any plumbing or maintenance professional.
The 45mm AHD 60m Dual View Rotation Pipe Inspection Camera System is a versatile tool for professionals in plumbing, construction, and infrastructure maintenance. This high-tech camera system features dual view rotation capabilities and a 60m cable for thorough inspection of pipes and other hard-to-reach areas. Whether diagnosing blockages, conducting routine maintenance, or performing construction surveys, this camera system is an invaluable asset for ensuring the integrity and safety of pipes and infrastructure.
Overview of 45mm Side & Front Sewer Camera
______
| Dia.45mm side & front 360° rotation camera |
| 1/3 CMOS, 1.3MP pilex HD , waterproof IP68 |
| 8 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 7000mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
Main Part 1: 45mm side & front 360° rotation camera head
______
| Camera size | 45mm x 107mm |
| Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 101° |
| Transmitter | Built-in 512Hz transmitter optional |
| Rotation range | Rotation: Pan 360° |
| Light | 6pcs high light LED lighting adjustable (down view & side view) |
| Connector | Detachable with aviation plug type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 8"HD IPS LCD Screen, 1280X720 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Keyboard | USB wireless Keyboard real time typewriting |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 7000mA rechargeable Li-ion Battery Pack |
| Battery level indicator | |
| Control box size | 23 x 20 x 5 cm |
| Sunshade | Sunshade included |
Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Material | Fiberglass push rod cable |
| Cable diameter | 7mm |
| Cable length | 60m |
| Reel size | 51 x 25 x 64cm |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
