High Quality Sewer Drain Pipe Inspection Camera And Water Well Borehole Camera Manufacturer.

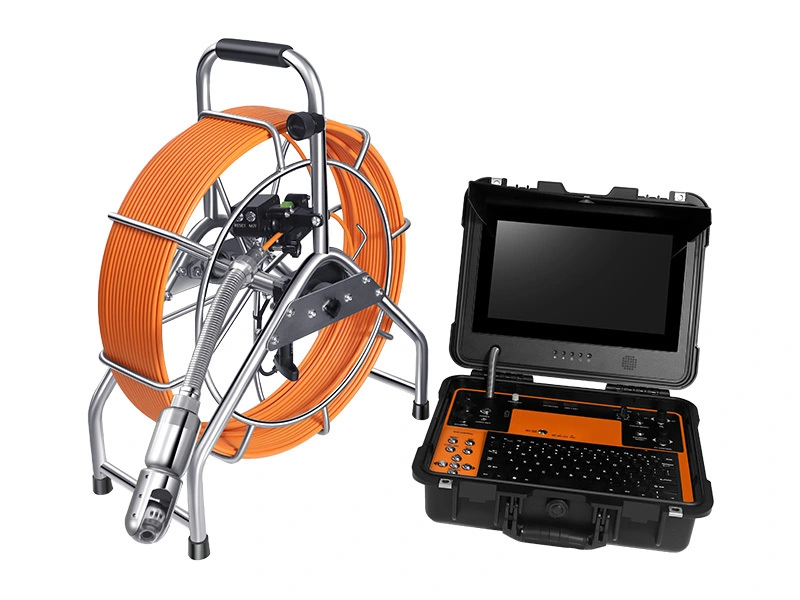

50mm Pan Tilt AHD 60m 360 degree view Drain Pipe Inspection Camera
The 50mm Pan Tilt AHD 60m 360 degree view Drain Pipe Inspection Camera is a high-quality and versatile tool for inspecting drains and pipes. Its ability to pan and tilt allows for a complete 360 degree view, while the AHD technology ensures clear and sharp footage. With a 60m cable, it offers great flexibility for use in various situations, making it an ideal choice for professionals in plumbing and inspection services.
Selling points:
1. 360 degree view: Offers a comprehensive view of the pipe or drain being inspected, ensuring thorough assessment.
2. AHD technology: Provides high-definition and clear footage for accurate analysis and identification of issues.
3. 60m cable: Offers versatility and flexibility for use in various settings, allowing for extensive reach during inspections.
Overview of 50mm Pan Tilt Sewer Camera
______
| 360° rotation AHD Camera Head, Pan 360° Tilt 180° |
| 1/3 CMOS,2.0MP pilex FHD , waterproof IP68 |
| Adjustable focus function |
| 13 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
Main Part 1: 50mm Pan Tilt rotation camera head
______
| Camera size | 50mm x 154mm |
| Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 120° |
| Focusing | Manual focus manually |
| Rotation range | Rotation: Pan 360°， Tilt 180° |
| Light | 6pcs high light LED lighting adjustable |
| Connector | Detachable with aviation plug type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 13"HD IPS LCD Screen, 1280X720 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Keyboard | USB wireless Keyboard real time typewriting |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 8800mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Material | Fiberglass push rod cable |
| Cable diameter | 7mm |
| Cable length | 60m |
| Reel size | 51 x 25 x 64cm |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
