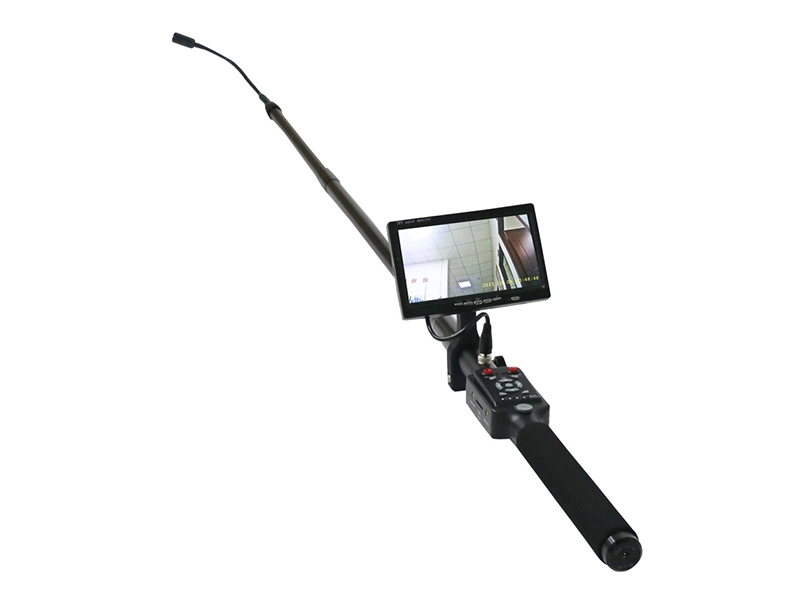

29mm self-leveling Telescopic Video Inspection Camera
Introducing the 29mm self-leveling Telescopic Video Inspection Camera - a versatile tool for inspecting hard-to-reach areas with ease. With its telescopic design and self-leveling feature, this camera can navigate through tight spaces and provide clear visuals, making it ideal for plumbing, HVAC, automotive, and construction inspections. Whether you're looking to identify pipe blockages, inspect ductwork, or examine structural integrity, this compact and powerful tool has got you covered.
Overview of 29mm self-leveling Telescopic Camera
______
| 7 inch TFT LCD monitor |
| Waterproof IP68 |
| Min Length: 1.88m Max Length: 4m, (Extension pole 80cm can be added) |
| DVR control box with audio ,video recording and photography function |
| Built in 2200mA li-ion battery inside |
Main Part 1: 29mm self-leveling camera head
______
| Camera size | 29mm |
| Camera pixel | 420TVL 1/4’’ CMOS camera |
| Camera range | View range 120° |
| Light | 12pcs high light LED lighting adjustable |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 7 inch TFT LCD monitor |
| Function |
Video, auido and photography function DVR |
| Video / audio output to another screen |
|
| Power supply | DC 12V |
| Angle Adjustment | Flexible snake connector easily to adjust the monitor direction |
| Buttons | LED brightness adjusting knob |
| A / V & photo selection available | |
| On/off microphone control button | |
| Aluminum carrying case | Carrying size : 93x25x11cm |
Main Part 3: Battery Pack
______
| Battery capacity | 2200mA li-ion battery |
| Charger | AC110V-240V 1.5A power charger |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
