High Quality Sewer Drain Pipe Inspection Camera And Water Well Borehole Camera Manufacturer.

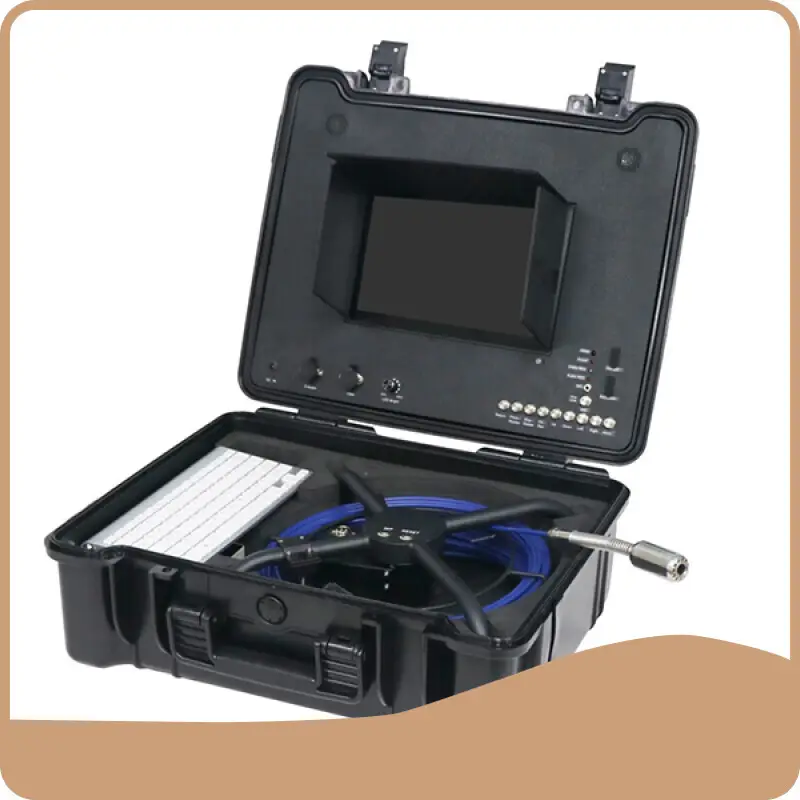

Plumbing Camera Φ5.2mm X 20m Fibreglass Rod Push Cable & Reel at Sale Φ23 X45 Mm
Product details of the plumbing camera
Product Overview
The raw materials of plumbing camera undergoes the strict selection, which is conducted by our workers. Following the stringent industry standards in the inspection and testing process, the product is sure to be of the highest quality. Vicam Mechatronics 15 years Manufacturer focusing on Sewer Drain Pipe Cameras and Water Well Cameras keeps consistency concurrent with the latest trends in the market.
Product Introduction
The main differences between Shenzhen Vicam Mechatronics Co.,Ltd's plumbing camera and similar products are as follows.
Camera Head
● Camera head size Φ23 x 53mm for pipe Φ25 to 200mm
● AHD module, sensor 1/3" CMOS ,1.3MP pixel
● Camera head casing material stainless steel
● Detachable with pins type connection to Cable Reel
● Field of view 120°,IP68 waterproof
● 12 pcs high intensity white LED
Cable Reel
● Fibreglass push rod cable with meter counter
● Digital meter counter function, error is less than 1%
● Cable diameter Φ5.2mm
● Cable length from 20m / 30m
● Reel size Φ 440X122mm
● Do not need to hold the cable reel by hand, it can be inside the box or on the ground
Panel
Monitor:
● 10 inch LCD IPS Screen
● 1280*720 resolution
● 16:9 display model
● Sun shield and remote control included
Built-in DVR control unit:
● There will be no control box, the DVR control part will be built in the monitor board
● Video input and encoder input
● USB flash drive (Max 1TB) jack, wireless keyboard jack
● LED brightness adjusting knob
● HD DVR video / photo selection available
● On/off microphone control button
● Up / down / left / right button
Battery Pack & Charger
● 8800mA li-ion battery with power switch
● AC110V-240V 1.5A power charger
● Charging time 6 hours, working time 8~10 hours
ABS Engineer Case
● Case size: 520 x 435 x 200mm
● Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
● Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Frequently Asked Questions
Company Introduction
Vicam Mechatronics 15 years Manufacturer focusing on Sewer Drain Pipe Cameras and Water Well Cameras, located in shen zhen, is a company. Our main product is 便携式管道检测仪,手推式管道检测仪,360°旋转管道检测仪,水下视频检测仪,手持伸缩杆检测仪. Shenzhen Vicam Mechatronics Co.,Ltd takes customer's satisfaction as an important criterion and provides thoughtful and reasonable services for customers with a professional and dedicated attitude. If you would like to purchase our products, please contact us as soon as possible.
