High Quality Sewer Drain Pipe Inspection Camera And Water Well Borehole Camera Manufacturer.

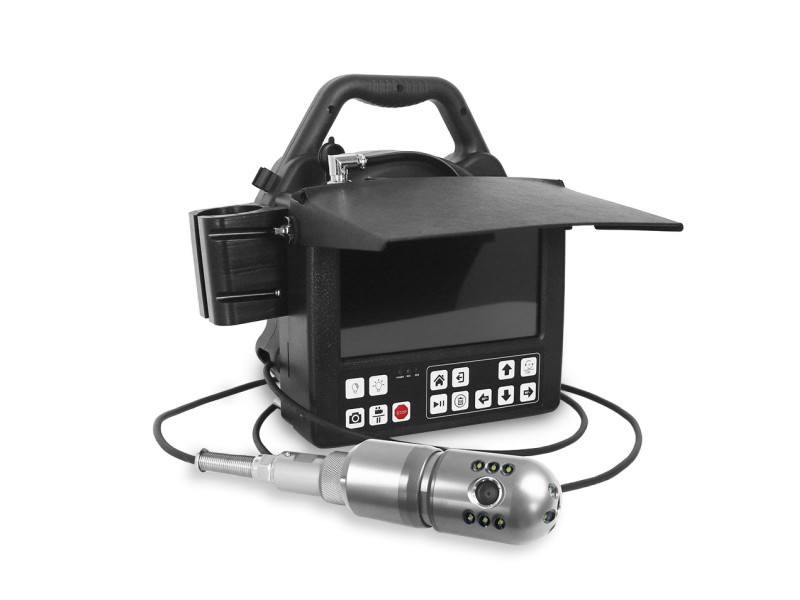

45mm Portable AHD Chimney Inspection Camera
The 45mm Portable AHD Chimney Inspection Camera is a compact and portable device that allows for easy inspection of chimneys and ventilation systems. With advanced AHD technology, it provides high-definition video and images for thorough and accurate inspections.
Introducing the powerful 45mm Portable AHD Chimney Inspection Camera - imagine effortlessly navigating through the dark and narrow passages of your chimney, uncovering hidden cracks and blockages with crystal-clear, high-definition images. With its compact size and advanced technology, this camera is your ultimate tool for ensuring the safety and efficiency of your fireplace and chimney. Say goodbye to guesswork and hello to peace of mind as you explore every nook and cranny with this essential inspection device.
Overview of 45mm dual rotation Camera
______
| 45mm dual view 360 degree rotation camera |
| 1/3 CMOS, 1.3MP pilex FHD , waterproof IP68 |
| 8 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| Built in 7000mA li-ion battery inside |
Main Part 1: 45mm dual view 360 degree rotation camera head
______
| Camera size | 45mm x 107mm |
| Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 120° |
| Light | 6pcs high light LED lighting adjustable (down view and side view) |
| Connector | Detachable with pins type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 8"HD IPS LCD Screen,1280*720 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 7000mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Cable diameter | 5mm |
| Cable length | 20m |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
Frequently Asked Questions
