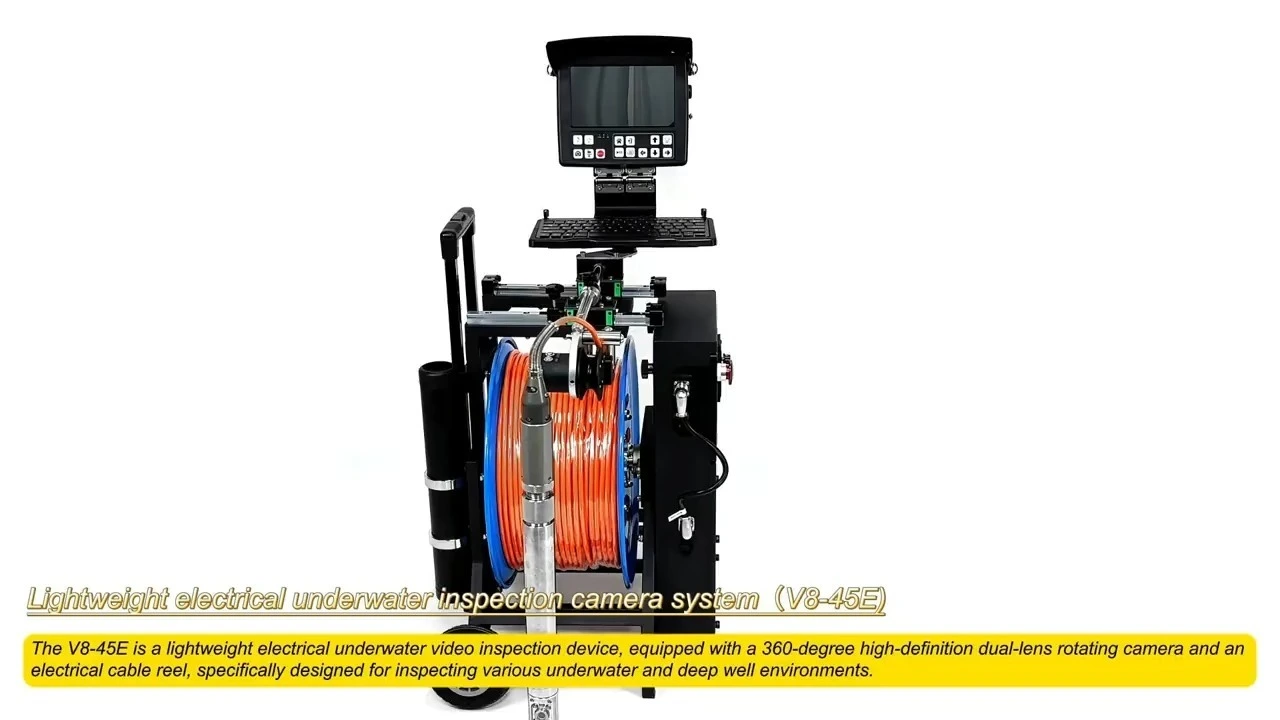

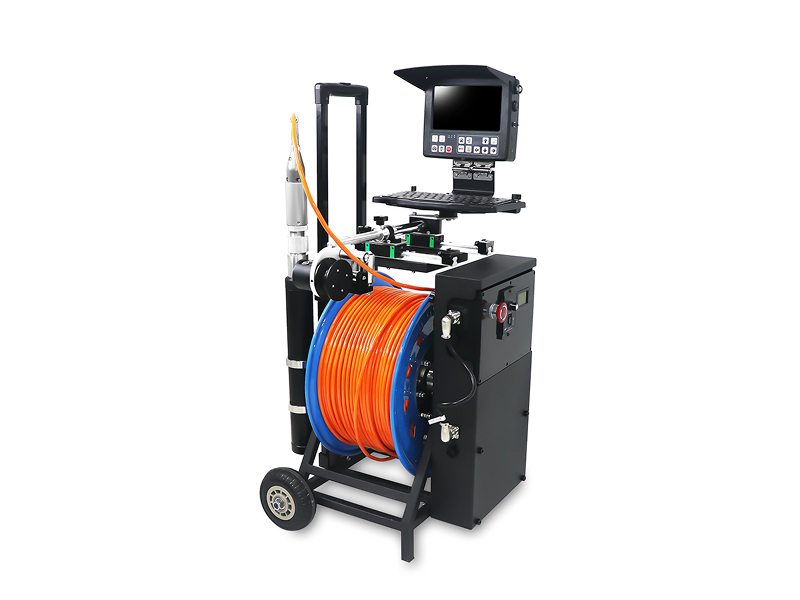

Vicam 45mm dual (side/down) rotation camera electric cable reel 8inch underwater camera
The Vicam 45mm dual (side/down) rotation camera electric cable reel with an 8-inch underwater camera is designed for versatile underwater inspection and monitoring tasks. Ideal for marine research, underwater construction, and inspection of pipelines or ship hulls, it allows users to capture clear visuals from multiple angles thanks to its dual rotation capability. The integrated electric cable reel ensures efficient cable management during extended underwater operations.
Overview of 45mm dual (side/down) underwater Camera
______
| Dia 45mm dual (side/down) camera |
| 1/3 CMOS, 1.3MP pilex AHD , waterproof IP68 |
| Adjustable focus function for side camera |
| 8 inch IPS icd screen,1280*720 resolution |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 10500mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
Main Part 1: 45mm dual (side/down) rotation waterproof camera head
______
| Camera size | 45mm x 420mm |
| Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 120° |
| Focusing | Manual focus for side camera |
| Rotation range | Rotation: Pan 360°， Tilt 180° |
| Light | 6pcs high light LED lighting adjustable (side & down camera) |
| Connector | Detachable with aviation plug type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 8"HD IPS LCD Screen, 1280X720 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Keyboard | USB wireless Keyboard real time typewriting |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 10500mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Material | Oxygen free copper flexible cable |
| Cable diameter | 8mm |
| Cable length | 100m-200m |
| Electric winding | Adjustable speed |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
