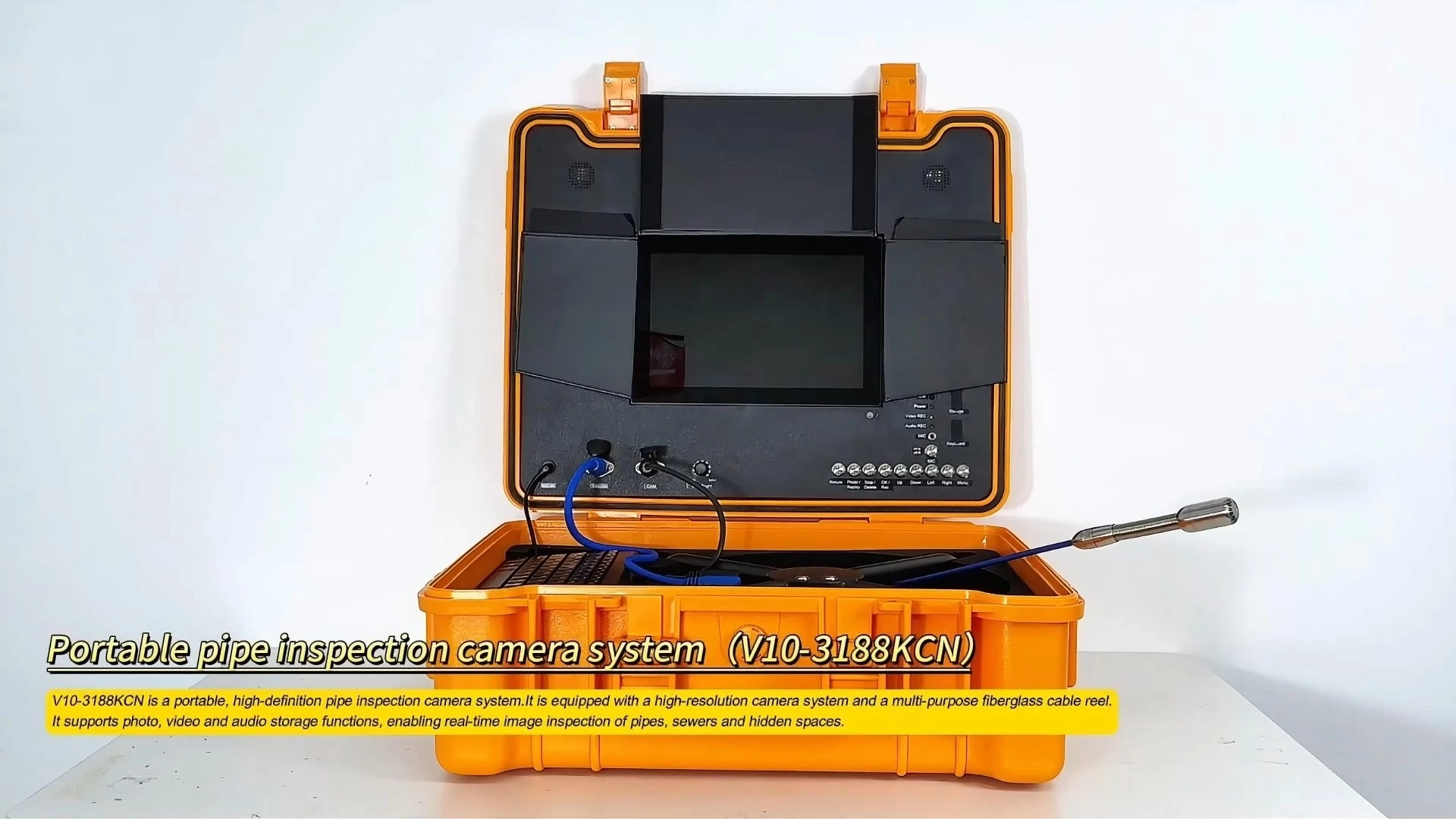

23mm 10inch AHD Portabel Pipe Inspection Camera System
The 23mm AHD Portable Pipe Inspection Camera System is a compact and versatile tool for inspecting pipes and other tight spaces. With its high-definition camera and portable design, it allows for easy and accurate viewing of potential issues within pipes for efficient maintenance and repairs.
The 23mm AHD Portable Pipe Inspection Camera System is a high-tech tool designed for examining pipelines, drains, and other hard-to-reach areas. It features a compact and portable design, making it easy to carry and use in various settings. This versatile camera system can be used by plumbers, maintenance workers, and contractors to detect clogs, leaks, and other issues within pipes and conduits, making it a valuable asset for any professional in the field.
Overview of 23mm portable Camera
______
| 1/3 CMOS, 1.3MP pilex FHD |
| Waterproof IP68 |
| 10 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
Main Part 1: 23mm camera head
______
| Camera size | 23mm x 53mm |
| Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 120° |
| Light | 12pcs high light LED lighting adjustable |
| Connector | Detachable with pins type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 10"HD IPS LCD Screen, 1280X720 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Keyboard | USB wireless Keyboard real time typewriting |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 8800mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Material | Fiberglass push rod cable |
| Cable diameter | 5.2mm |
| Cable length | 20m-50m |
| Reel size | 440x122mm |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
