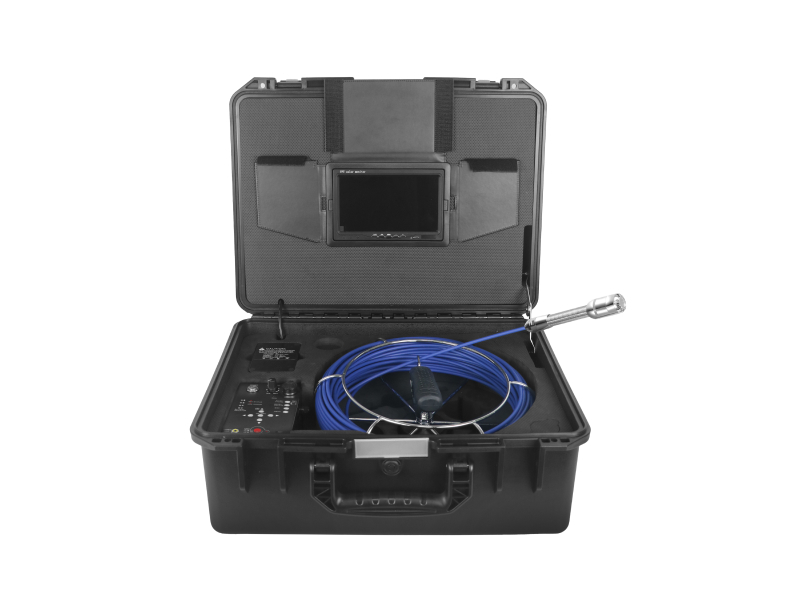

23mm Portable Pipe Endoscope Inspection Camera
The 23mm Portable Pipe Endoscope Inspection Camera is a compact and portable device designed for inspecting hard-to-reach areas such as pipes, engines, and other industrial equipment. With a 23mm diameter camera head, this tool provides high-quality images and videos for accurate inspections.
The 23mm Portable Pipe Endoscope Inspection Camera is a small and lightweight device that can be used to inspect hard-to-reach areas such as pipes, engines, and air conditioners. Its waterproof design and LED lights allow for clear and detailed visuals, and its long cable provides flexibility and versatility in use. With its ability to capture and record images and videos, this endoscope camera is a handy tool for professionals and DIY enthusiasts alike.
23mm portable pipe endosoco inspection camera
______
| 23mm camera head |
| 7inch LCD monitor |
| 20m-40m cable reel |
| DVR control box |
| 4400mA battery |
Main Part 1: 23mm camera head and cable reel
______
| Camera size | 23mm x 53mm |
| Camera Material | Aluminum & Toughened glass lens window |
| LED | 12 pcs high intensity white LED |
| Waterproof level | Field of view 60°, IP68 waterproof |
| Cable reel Material | Fibreglass push rod cable |
| Cable diameter | Φ5.2mm |
| Cable length | from 20m to 50 optional |
| Cable reel size | Φ 320 x 110mm |
Main Part 2: DVR control unit
______
| Monitor size | 7 inch TFT LCD monitor |
| Pixels | 800x600 pixels |
| Aspect Ratio | 4:3 display model |
| Supporting functions | Sun shield and remote control included |
| DVR | DVR control buttons |
| Store | SD card (max 64G) jack,keyboard jack |
| LED adjusting | LED brightness adjusting knob |
| Shooting options | A / V & photo selection available |
| Microphone | On/off microphone control button |
| Battery | Battery level indicator lights |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
