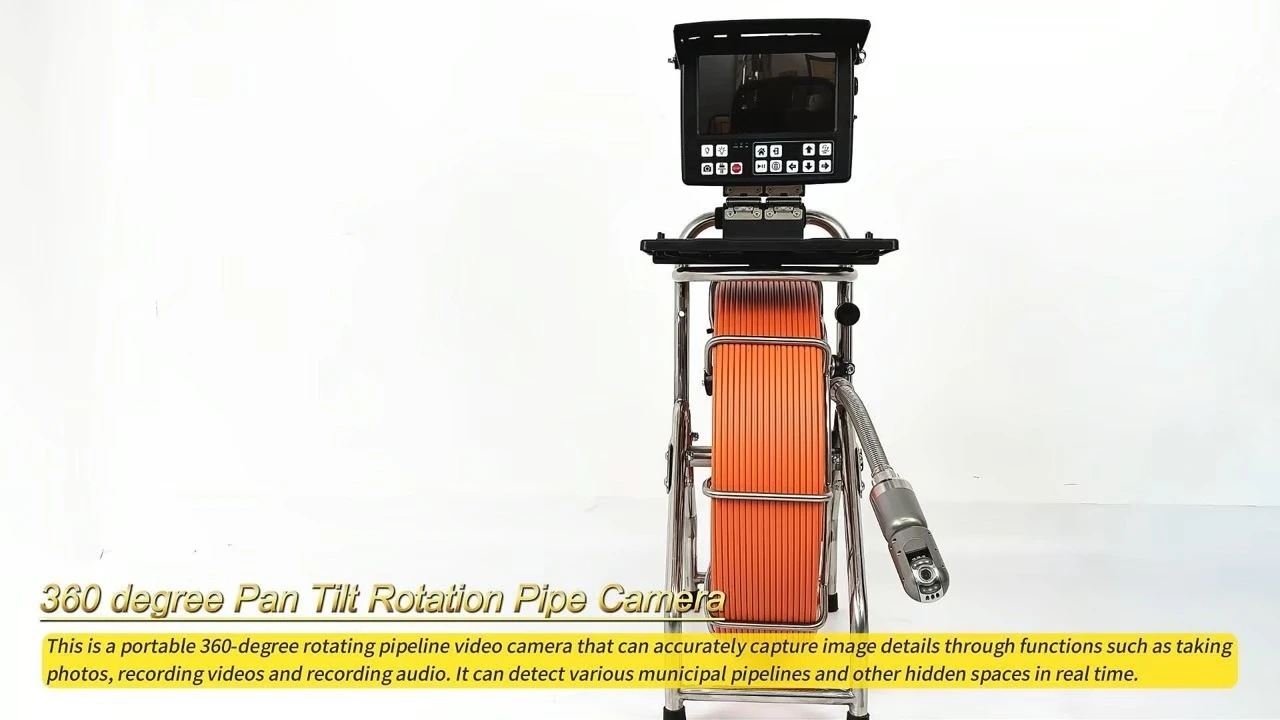

50mm Pan Tilt AHD 60m-150m 360 degree view Pipe Camera System
The 50mm Pan Tilt AHD 60m-150m 360 degree view Pipe Camera System is an advanced surveillance tool designed for inspecting and monitoring pipes and other narrow spaces. With its ability to pan and tilt and provide a 360-degree view, this system offers flexible and comprehensive visual coverage for any inspection needs.
The 50mm Pan Tilt AHD 60m-150m 360 degree view Pipe Camera System is a versatile and powerful tool for inspecting pipelines and different types of pipes. It offers a wide range of view up to 360 degrees and can provide high-definition footage in both daylight and low-light conditions. With its advanced pan and tilt functionality, this camera system can easily navigate through narrow and complex pipelines to ensure a comprehensive inspection.
- The high-definition footage quality ensures clear and accurate inspection results, even in low-light conditions.
- The 360-degree view and pan-tilt functionality allow for thorough and efficient inspection of pipelines and different types of pipes.
- The camera system is designed to navigate through narrow and complex pipelines, ensuring a comprehensive inspection.
Overview of 50mm Pan Tilt Sewer Camera
______
| 360° rotation AHD Camera Head, Pan 360° Tilt 180° |
| 1/3 CMOS, 1.3MP pilex FHD , waterproof IP68 |
| Adjustable focus function |
| 8 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 7000mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
Main Part 1: 50mm Pan Tilt rotation camera head
______
| Camera size | 50mm x 154mm |
| Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 120° |
| Focusing | Manual focus manually |
| Rotation range | Rotation: Pan 360°， Tilt 180° |
| Light | 6pcs high light LED lighting adjustable |
| Connector | Detachable with aviation plug type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 8"HD IPS LCD Screen, 1280X720 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Keyboard | USB wireless Keyboard real time typewriting |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 7000mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Material | Fiberglass push rod cable |
| Cable diameter | 9mm or 11mm |
| Cable length | 60m-150m |
| Reel size | 70 x 28 x 84cm |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
