55mm HD 100m Down View Underwater Pipe Borehole Inspection Camera
The 55mm HD 100m Down View Waterproof Borehole Underwater Inspection Camera is a versatile tool designed for inspecting remote boreholes and wells. With advanced waterproof capabilities and a wide viewing angle, it provides clear and reliable visuals even in challenging underground environments.
Engineered for deep water applications, this 55mm HD underwater inspection camera delivers clear visuals from depths of up to 100 meters, enabling accurate assessment of boreholes and submerged pipelines. Its compact design allows for easy maneuverability in tight spaces, enhancing inspection efficiency and precision.
Overview of 55mm Underwater Inspection Camera
______
| 55mm HD camera head, sensor 1/3" CMOS , 2.0MP pixel |
| Φ6.5mm x 100m flexible cable with depth counter function |
| 32G USB flash storage device |
| Video/audio recording & still image capture |
| 720P vidoe and AVI format |
| 6800mA li-ion battery pack |
| Keyboard for real time typewriting |
| 8 inch HD color monitor, 1980x1080 resolution |
Main Part 1: 55mm waterproof water well camera head
______
| Camera size | 55mm x 75mm |
| Camera pixel | Sensor 1/3" CMOS, 2.0MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 120° |
| Light | 8pcs high light LED lighting adjustable |
| Connector | Detachable with aviation plug type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 8"HD IPS LCD Screen, 1980x1080 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Keyboard | USB wireless Keyboard real time typewriting |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 6800mA rechargeable Li-ion Battery Pack |
| Battery level indicator |

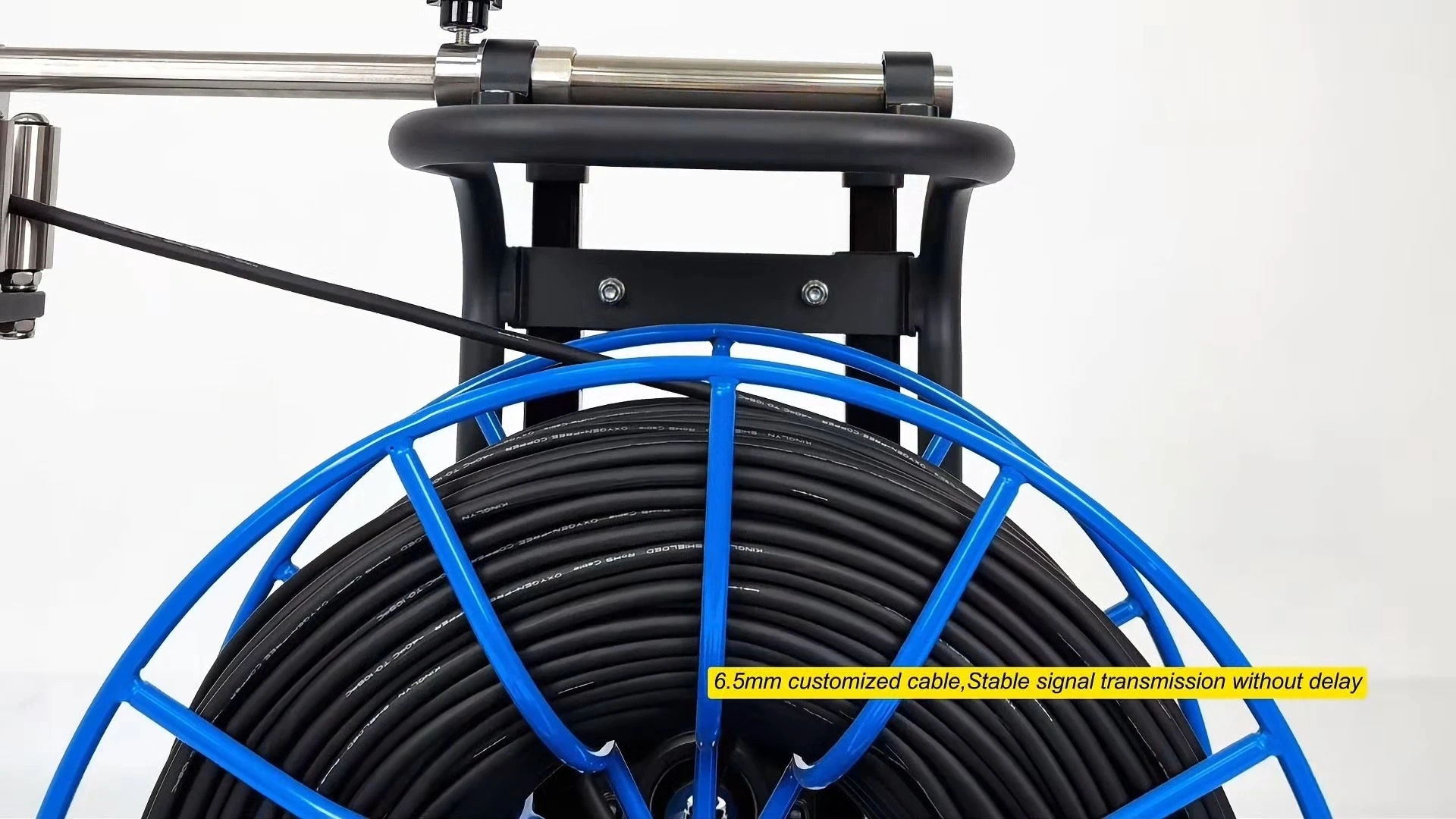

Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Material | Oxygen free copper flexible cable |
| Cable diameter | 6.5mm |
| Cable length | 50m-200m |
| Reel size | 40 x 35 x 60 cm |
Applications of Underwater Inspection Camera
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
