High Quality Sewer Drain Pipe Inspection Camera And Water Well Borehole Camera Manufacturer.
10mm Mini Portable Pipe Endoscope Inspection Camera
The 10mm Mini Portable Pipe Endoscope Inspection Camera is a compact and versatile tool that allows for easy visual inspection of hard-to-reach areas such as pipes, engines, and other small spaces. With its high-resolution camera and flexible tube, this device is perfect for DIY home improvements and professional inspections alike.
The 10mm Mini Portable Pipe Endoscope Inspection Camera is a compact and versatile tool for inspecting hard-to-reach areas. It features a 10mm diameter camera head with adjustable LED lights, allowing for clear and detailed video capture. With its flexible and waterproof design, this endoscope is perfect for a wide range of applications, from automotive maintenance to household repairs.
The selling points that can impress users include the compact and portable design, high-quality video capture with adjustable LED lights, and the flexibility and waterproof features for versatile use in various environments.

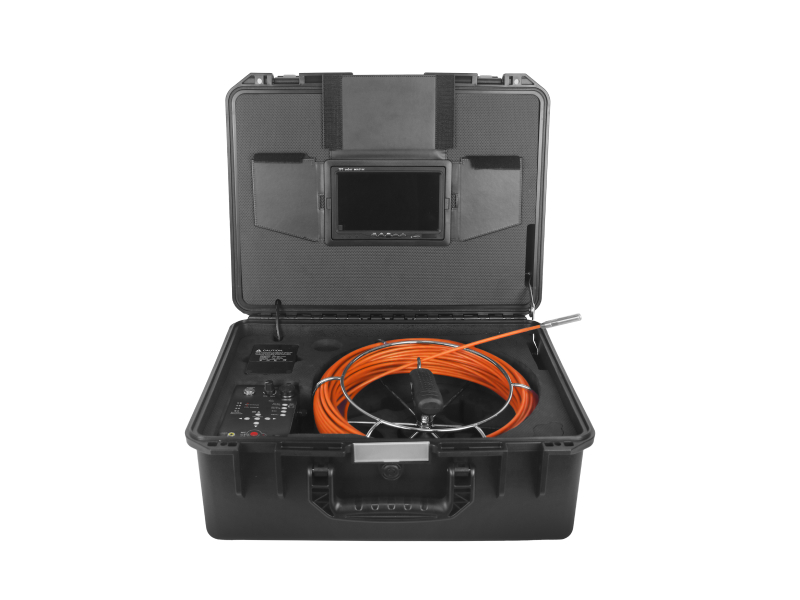

10mm Mini portable pipe endosoco inspection camera
______
| 10mm mini camera head |
| 7inch LCD monitor |
| 20m-40m cable reel |
| DVR control box |
| 4400mA battery |
Main Part 1: 10mm camera head and cable reel
______
| Camera size | 10mm x 33mm |
| Camera Material | Aluminum & Toughened glass lens window |
| LED | 4 pcs high intensity white LED |
| Waterproof level | Field of view 60°, IP68 waterproof |
| Cable reel | 20m xΦ5.0mm fiberglass cable |
| Cable reel Material | Fibreglass push rod cable |
| Cable diameter | Φ5.0mm |
| Cable length | from 20m to 50 optional |
| Cable reel size | Φ 320 x 110mm |
Main Part 2: DVR control unit
______
| Monitor size | 7 inch TFT LCD monitor |
| Pixels | 800x600 pixels |
| Aspect Ratio | 4:3 display model |
| Supporting functions | Sun shield and remote control included |
| DVR | DVR control buttons |
| Store | SD card (max 64G) jack,keyboard jack |
| LED adjusting | LED brightness adjusting knob |
| Shooting options | A / V & photo selection available |
| Microphone | On/off microphone control button |
| Battery | Battery level indicator lights |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
