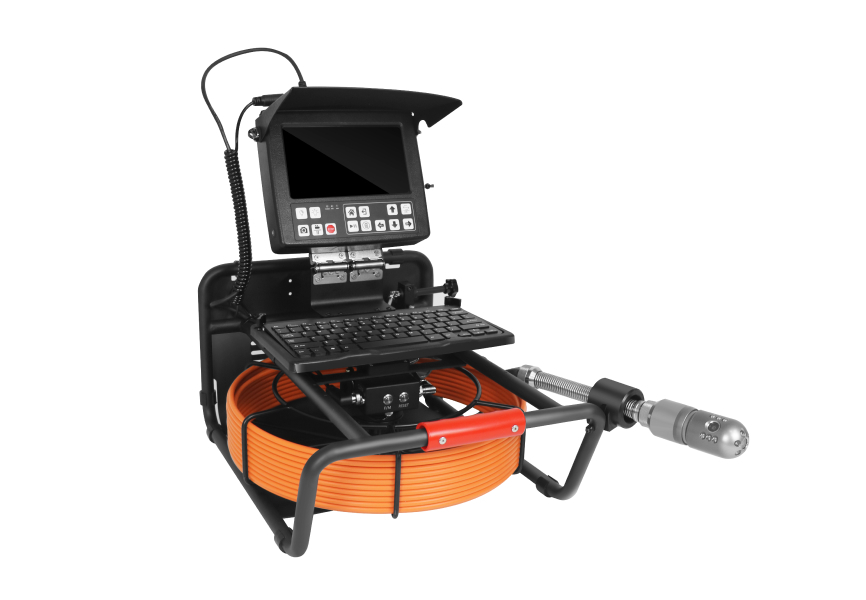

45mm portable AHD Pipe Inspection Camera System
The 45mm portable AHD Pipe Inspection Camera System is a compact and versatile tool for inspecting pipes and other hard-to-reach areas. With high-definition video quality and a flexible camera head, this system is perfect for professionals in plumbing, construction, and maintenance industries.
The 45mm portable AHD Pipe Inspection Camera System is designed for professionals in the plumbing, construction, and maintenance industries who need to visually inspect pipes and conduits with diameters of up to 45mm. With its advanced AHD camera technology, users can easily navigate and identify blockages, leaks, and other issues in hard-to-reach areas. This compact and lightweight system is easy to transport and operate, making it ideal for on-site inspections and troubleshooting tasks.
Overview of 45mm Side & Front Sewer Camera
______
| Dia.45mm side & front 360° rotation camera |
| 1/3 CMOS, 1.3MP pilex HD , waterproof IP68 |
| 8 inch IPS lcd screen, 1920X1080 resolution |
| DVR control box with audio ,video recording and photography function |
| Built in 6800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
| All-in-One Design ,Easy to Carry, Easy to use |
Main Part 1: 45mm side & front 360° rotation camera head
______
| Camera size | 45mm x 107mm |
| Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 101° |
| Transmitter | Built-in 512Hz transmitter optional |
| Rotation range | Rotation: Pan 360° |
| Light | 6pcs high light LED lighting adjustable (down view & side view) |
| Connector | Detachable with aviation plug type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
Main Part 2: DVR control unit
______
| Screen Size | 8"HD IPS LCD Screen, 1280X720 resolution |
| Waterproof level | IP68 |
| Function | 1080P format video, auido and photography function DVR |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 6800mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
Main Part 3: Cable reel
______
| Meter counter | Digital meter counter |
| Material | Fiberglass push rod cable |
| Cable diameter | 7mm |
| Cable length | 20m-50m |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
