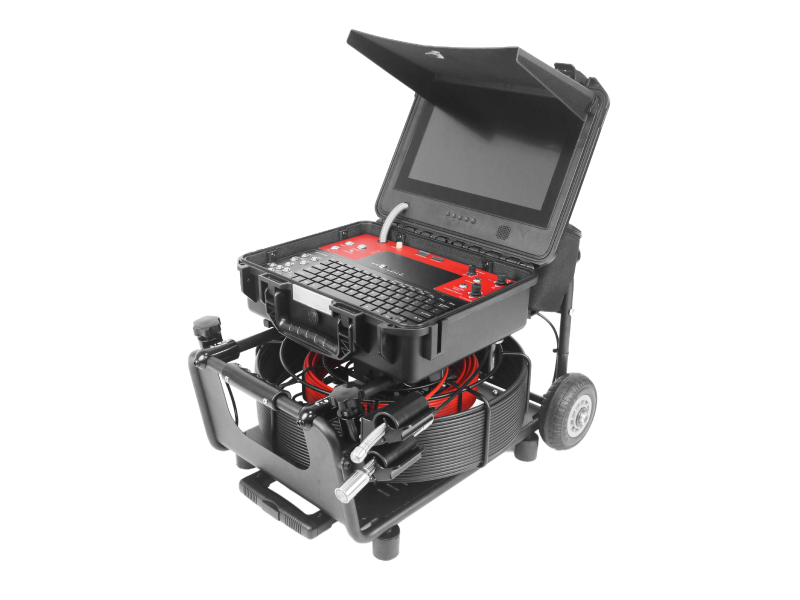

Dual Cable reel Dual Camera Head 17mm & 23mm Self-leveling Pipe Camera System
Dual cable reel equipped with interchangeable 17mm and 23mm camera heads and self-leveling functionality maintains correct image orientation during deployment while integrated controls simplify cable management and head swaps. Suitable for inspecting a range of pipe diameters, it shortens diagnostic workflows and minimizes repeat visits by providing steady, upright footage for reliable condition assessment.
Overview of Dual Cable Dual camera head
Pipe Camera System
______
| 17mm camera head & 23mm self-leveling camera head |
| 1/3 CMOS, 2.0MP pilex HD , waterproof IP68 |
| Dual cable reel (7mm & 5.2mm) 20m-50m option |
| 13 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |
Main Part 1: 17mm camera head
______
| Camera size | 17 x 17.4mm |
| Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 90° |
| Light | 6pcs high light LED lighting adjustable |
| Connector | Connected to the cable reel, cannot be removed |
| Material | Lens window sapphire glass & stainless steel |
Main Part 1: 23mm self-leveling camera head
______
| Camera size | 23mm x 47mm |
| Camera pixel | Sensor 1/3" CMOS, 2.0MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 120° |
| Light | 12pcs high light LED lighting adjustable |
| Connector | Detachable with pins type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
| Self-leveling | The image is always upwards, no matter which direction the camera is facing. |
Main Part 2: DVR control unit
______
| Screen Size | 13"HD IPS LCD Screen, 1280X720 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Keyboard | USB wireless Keyboard real time typewriting |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 8800mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
Main Part 3: Cable reel
______
| Meter counter |
Digital meter counter (only for outer cable reel) |
| Material | Fiberglass push rod cable |
|
Cable diameter
|
7mm (outer cable reel) 5.2mm (inner cable reel) |
|
Cable length |
20m-50m(outer cable reel) 20m-40m(inner cable reel) |
| Reel size |
40cmx40cm(outer cable reel) 30cmx30cm(inner cable reel) |
Applications
______
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
